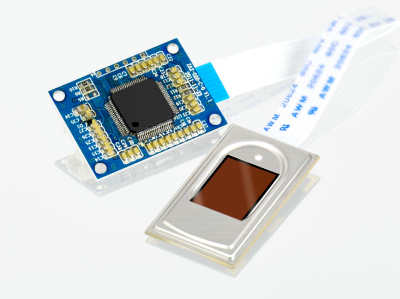

Fingerprint Module

Fingerprint Module

  • Min.Order Quantity: 100 Sets
  • Supply Ability: 1000 Sets per Week
  • Port: Chinese Port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier Shenzhen ZhiAng
| Factory
Experience:2007-03-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20.4*33.4*1
  • Place of Origin:  Guangdong Shenzhen
  • Brand Name:  Zhiang
  • Model Number:  ZAZ-020
  • Weight: 0.005 kg

The performance index:

 Fingerprint sensor type: condenser

 Detection: reflection type detection technology, a fingerprint detection function

 Abrasion resistance of high strength: 1 millions of times

 Anti static index: >=15KV

 A total of 930 medals: fingerprint

 Working voltage: 5V

 Working current: 100 mA peak current: 150mA

 The time of fingerprint image input: <0.5 seconds

 False accept rate (FAR): ≤ 0.00001% (safety grade 3)

 FRR (FAR): ≤ 0.0001% (safety grade 3)

 Comparison of time: ≤ 1

 Verification: support the fingerprint verification (1:1) and fingerprint search (1:N)

 Profile: 256 bytes

 Template file: 512 bytes

 Security level: level five (from low to high: 1,2,3,4,5)

 Work environment:

 Temperature: -40 ℃ ~ 70 ℃

 Relative humidity: 40%RH~85%RH (no treatment)

 The storage environment:

 Temperature: -40 ℃ ~ 70 ℃

 Relative humidity: <85%H (no treatment)

 Computer interface: support UART (TTL logic level) or USB1.1

 The communication baud rate (UART): (9600*N) BPS and N=1~12 (the default value of N=6, namely 57600bps)

 Dimensions (L*W*H):

 Split:

 Fingerprint module size: 30*22 (mm)

 Fingerprint sensor size: 20*32 (mm)

 Effective collecting area: 12*15 (mm)

  • Size:  20.4*33.4*1
  • Place of Origin:  Guangdong Shenzhen
  • Brand Name:  Zhiang
  • Model Number:  ZAZ-020
  • Weight: 0.005 kg
