The performance index:

Fingerprint sensor types: RF type

Detection: reflection type detection technology, a fingerprint detection function

Abrasion resistance of high strength: 1 millions of times

Anti static index: >=15KV

A total of 930 medals: fingerprint

Working voltage: 5V

Working current: 100 mA peak current: 150mA

The time of fingerprint image input: <0.5 seconds

False accept rate (FAR): ≤ 0.00001% (safety grade 3)

FRR (FAR): ≤ 0.0001% (safety grade 3)

Comparison of time: ≤ 1

Verification: support the fingerprint verification (1:1) and fingerprint search (1:N)

Profile: 256 bytes

Template file: 512 bytes

Security level: level five (from low to high: 1,2,3,4,5)

Work environment:

Temperature: -40 ℃ ~ 70 ℃

Relative humidity: 40%RH~85%RH (no treatment)

The storage environment:

Temperature: -40 ℃ ~ 70 ℃

Relative humidity: <85%H (no treatment)

Computer interface: support UART (TTL logic level) or USB1.1

The communication baud rate (UART): (9600*N) BPS and N=1~12 (the default value of N=6, namely 57600bps)

Dimensions (L*W*H):

Split:

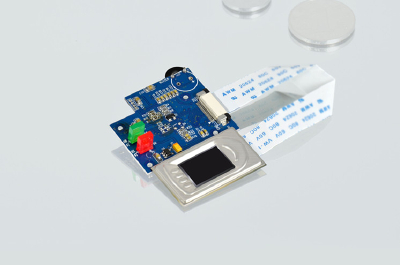

Fingerprint module size: 30*22 (mm)

Fingerprint sensor size: 20*32 (mm)

Effective collecting area: 12*15 (mm)
