Product Details
- Size: 97 * 48 *18 mm
- Place of Origin: Guangdong Shenzhen
- Brand Name: Zhiang
- Model Number: ZWY-020
- Weight: 0.050 kg
The performance index:

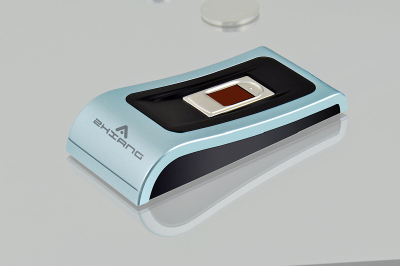

Capacitive fingerprint sensor
Detection technology: reflection induction detection technology, with functions of living fingerprint detection
High resistance to wear and tear strength: 1 million times
Antistatic indicators: > = 15 kv
Fingerprint total number: 930
Working voltage: 5 v
Working current: 100 mA peak current: 150 mA
Fingerprint image input time: < 0.5 seconds
Recognize false rate (FAR) : 0.00001% or less (security level 3)
Rejected boomed (FAR) : 0.0001% or less (security level 3)
Compare the time: 1 seconds or less
Validation: support fingerprint verification (1:1) and fingerprint search (1: N)
Search time: < 1.0 seconds (the latter, the average)
Profile: 256 bytes
Template file: 512 bytes
Security rating: 5 (from low to high: 1, 2, 3, 4, 5)
Working environment:
The temperature: - 40 ℃ ~ + 70 ℃
Relative humidity: 40% RH to 40% RH (no lon)
Relative humidity: 85% < H (no lon)
Communication interface: RS - 232 standard interface/TTL serial/USB standard interface
Dimension (L * W * H) :
Fingerprints size: 97 x 48 x 18 mm
Effective gathering area: 12 * 15 mm
Development platform, support for Windows, Windows CE, Linux, and B/S, C/S architecture platform, such as more convenient application and development on the system integrators.
Capacitive fingerprint sensor
Detection technology: reflection induction detection technology, with functions of living fingerprint detection
High resistance to wear and tear strength: 1 million times
Antistatic indicators: > = 15 kv
Fingerprint total number: 930
Working voltage: 5 v
Working current: 100 mA peak current: 150 mA
Fingerprint image input time: < 0.5 seconds
Recognize false rate (FAR) : 0.00001% or less (security level 3)
Rejected boomed (FAR) : 0.0001% or less (security level 3)
Compare the time: 1 seconds or less
Validation: support fingerprint verification (1:1) and fingerprint search (1: N)
Search time: < 1.0 seconds (the latter, the average)
Profile: 256 bytes
Template file: 512 bytes
Security rating: 5 (from low to high: 1, 2, 3, 4, 5)
Working environment:
The temperature: - 40 ℃ ~ + 70 ℃
Relative humidity: 40% RH to 40% RH (no lon)
Relative humidity: 85% < H (no lon)
Communication interface: RS - 232 standard interface/TTL serial/USB standard interface
Dimension (L * W * H) :
Fingerprints size: 97 x 48 x 18 mm
Effective gathering area: 12 * 15 mm
Development platform, support for Windows, Windows CE, Linux, and B/S, C/S architecture platform, such as more convenient application and development on the system integrators.
- Size: 97 * 48 *18 mm
- Place of Origin: Guangdong Shenzhen
- Brand Name: Zhiang
- Model Number: ZWY-020
- Weight: 0.050 kg
